1. Configuration

1.1 Install C/C++ Debug Extension in VS Code

  • Launch VS Code.
  • Go to the Extensions tab or use the shortcut (Ctrl+Shift+X).
  • Search for “C/C++" by Microsoft and install it.

1**.2 Create launch.json Configuration**

  • Select Run from the top menu.
  • Click "Add Configuration" to create launch.json.
  • Choose C/C++: (gdb) Launch configuration.

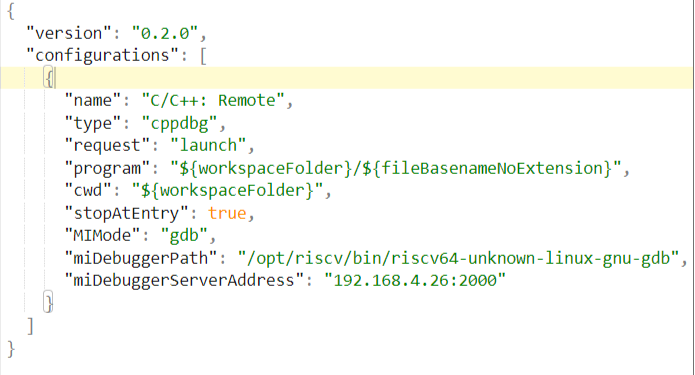

  • Replace the content of launch.json with the provided configuration. { "version": "0.2.0", "configurations": [ { "name": "C/C++: Remote", "type": "cppdbg", "request": "launch", "program": "${workspaceFolder}/${fileBasenameNoExtension}", "cwd": "${workspaceFolder}", "stopAtEntry": true, "MIMode": "gdb", "miDebuggerPath": "/opt/riscv/bin/riscv64-unknown-linux-gnu-gdb", "miDebuggerServerAddress": ":2000" } ] }

1**.3 Cross Compilation Using tasks.json**

  • Select Terminal -> Configure Tasks.
  • Create a new tasks.json file from the template.

Replace the content of tasks.json with the provided configuration.

 {
  "version": "2.0.0",
  "tasks": [
    {
      "label": "C: Build",
      "type": "shell",
      "command": "/opt/riscv/bin/riscv64-unknown-linux-gnu-gcc",
      "args": [
        "-g",
        "${file}",
        "-o",
        "${fileDirname}/${fileBasenameNoExtension}"
      ],
      "group": {
        "kind": "build"
      }
    }
  ]
}

2. Building and Remote Debugging

2**.1 Build and Copy Executable to RISC-V Board**
- Build the project by pressing **Ctrl+Shift+B** or clicking Terminal -> Run Build Task.
- The binary file will be generated in the same directory as the source file.
- Copy the executable to the RISC-V board using SCP.
            $ scp executable-file user@<ip address>:~/.


2.2  **Start GDB Server on RISC-V Board**
- Connect to the RISC-V board via SSH.
  $ ssh user@<ip address>
- Start the GDB server using the provided command.
$ gdbserver localhost:2000 executable-file


2.3 **Start Debugging in VS Code**
- Press F5 or click Run -> Start Debugging.
- Set breakpoints in VS Code.
- The output will be displayed in the RISC-V board terminal.
2.4  **Check Disassembly**
- Right-click to view the disassembly of the code using the "Open Disassembly View" option in the VS Code editor.

Python

1. Configuration

1.1 Install Python Extension in VS Code

  • Launch VS Code.
  • Go to the Extensions tab or use the shortcut (Ctrl+Shift+X).
  • Search for “Python" by Microsoft and install it.

1**.2 Create launch.json Configuration**

  • Select Run from the top menu.
  • Click "Add Configuration" to create launch.json.
  • Choose Python configuration.

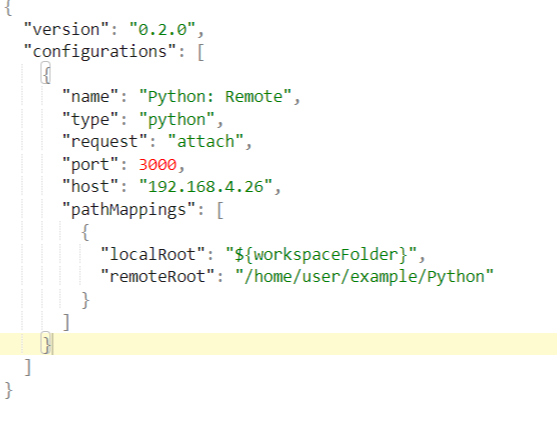

  • Replace the content of launch.json with the provided configuration. { "version": "0.2.0", "configurations": [ { "name": "Python: Remote", "type": "python", "request": "attach", "port": 3000, "host": "", "pathMappings": [ { "localRoot": "${workspaceFolder}", "remoteRoot": "/home/user/example/Python" } ] } ] }

2. Remote Debugging

2.1 Connect to the RISC-V Board via SSH

  • Establish an SSH connection to the RISC-V board: $ ssh user@

2.2 Install debugpy

  • Install the debugpy library on the RISC-V board: $ sudo pip3 install debugpy

2.3 Start the debugpy Server

  • Start the debugpy server on the RISC-V board: $ python3 -m debugpy --wait-for-client --listen 0.0.0.0:3000 executable-file.py

2**.4 Start Debugging in VS Code**

  • Press F5 or click Run -> Start Debugging in VS Code.
  • Set breakpoints within VS Code.
  • The output will be displayed in the RISC-V board terminal and the DEBUG CONSOLE in VS Code.

Node.js

1. Configuration

1.1 Create launch.json Configuration

  • Select Run from the top menu.

  • Click "Add Configuration" to create launch.json.

  • Choose Node.js: Attach configuration.

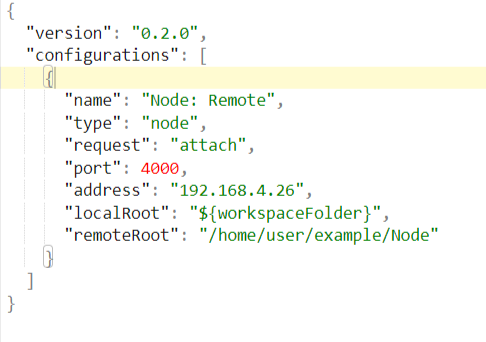

  • Replace the content of launch.json with the provided configuration. { "version": "0.2.0", "configurations": [ { "name": "Node: Remote", "type": "node", "request": "attach", "port": 4000, "address": "192.168.4.26", "localRoot": "${workspaceFolder}", "remoteRoot": "/home/user/example/Node" } ] }

  • Update the remoteRoot path with the appropriate Node.js file path on the board.

2. Remote Debugging

2.1 Connect to the RISC-V Board

  • Connect to the RISC-V board via SSH using the provided command. $ ssh user@

2.2 Start the Node.js Server

  • Start the Node.js server using the provided command.
  • The --inspect-brk flag enables debugging. $ node --inspect-brk=0.0.0.0:4000 executable-file.js

2**.3 Start Debugging in VS Code**

  • Press F5 or click Run -> Start Debugging.
  • Set breakpoints in VS Code.
  • Observe the output in the RISC-V board terminal and the DEBUG CONSOLE in VS Code.

↓ Jupyter Notebook

1. Installation

1.1 Switch to Super User Mode

$ sudo su

1**.2 Install rustc and cargo**

  • Download the rustup-init script and grant execute permissions:

    $ wget -O rustup-init.sh https://sh.rustup.rs $ chmod +x rustup-init.sh $ ./rustup-init.sh

  • Update the shell environment to include Cargo: $ source "$HOME/.cargo/env"

1.3 Check Rustc and Cargo Version

$ rustc --version
$ cargo --version

1**.4 Install Jupyter Notebook Using pip**

$ sudo pip install notebook

2. Running Jupyter Notebook

2.1 Start Jupyter Notebook

$ jupyter notebook --ip 0.0.0.0 --allow-root

2**.2 Access Jupyter Notebook from Host Machine**

  • After starting Jupyter Notebook, a listening URL will be displayed. You can access it from your host machine by changing the URL IP to the RISC-V board's IP.

3. Debugging

3.1 Launching Debugger in JupyterLab

  • Access JupyterLab by clicking the JupyterLab link in the top right corner.
  • Click the debugger icon to activate the debugger mode.

3.2 Setting Breakpoints

  • Place breakpoints by clicking on the left side of line numbers in a Python cell.

3.3 Executing the Program

  • Click the run icon on the status bar to execute the program.
  • The program will pause at the breakpoint.

3.4 Debugging Tools

  • A panel on the right provides debugging tools for tracking variables, call stacks, breakpoints, and source code.

↓ Eclipse CDT

Tab 1 Tab 2 Tab 3
C/C++

C/C++

1. Installation Steps

1.1. Install Eclipse IDE on Ubuntu

  • Download the Eclipse binary from the following link: Eclipse IDE for C/C++ Developers
  • Extract the Eclipse tar file: $ tar -xzvf eclipse-inst-jre-linux64.tar.gz
  • Install Eclipse: $ cd eclipse-installer/ $ ./eclipse-inst

1.2. Install Eclipse IDE for Embedded C/C++

  • Click on Eclipse IDE for Embedded C/C++ Developers and complete the installation process.
  • Provide an installation folder or use the default settings and click the Install button.
  • After installation, launch the Eclipse IDE.

1.3. Create a New Embedded C/C++ Project

  • After the Eclipse Welcome dashboard loads, click on Create a new Embedded C/C++ project.
  • Choose C Managed Build, provide the project name, and change the Toolchain to "RISC-V Cross GCC." Click "Next."
  • Select all the configurations and click Next.
  • Set the Toolchain name as RISC-V GCC/Linux (riscv64-unknown-linux-gnu-gcc).
  • Ensure that the gcc cross-compiler is available. If not, follow the Cross Compile C/C++ steps to install the toolchain to a specific folder and update the PATH as mentioned below.
  • Update the Toolchain name (e.g., /opt/riscv/bin) and click Finish.
  • The workspace will be created.

1**.4. Create a C File**

  • Right-click the project folder in Eclipse.
  • Navigate to New -> File -> Create the ".c" file.
  • Paste a simple "Hello, World!" program into the ".c" file:

1.5. Compile the C File

  • Click the Hammer icon below the main menu or Click Project → Build Project to compile the ".c" file.

1**.6. Copy the Executable File to StarFive Board Example**

$ scp /home/aximsoft/eclipse-workspace/hello/Debug/<file name>.elf user@<ip address>:~/

1.7. Install GDBserver on RISC-V Board

  • Update the package manager's cache: $ sudo apt update

  • Install GDBserver: $ sudo apt install gdbserver

  • Verify the installation: $ gdbserver --version

1.8. Start GDBserver on RISC-V Board

  • Start the GDB server: $ gdbserver localhost:5000 hel lo.elf

1**.9. Change Debug Configuration in Eclipse**

  • Go to the top menu bar in Eclipse.
  • Click Run -> Select Debug Configurations.
  • Update settings:
    • Double-click the C/C++ Remote Application.
    • Add a debug name.
    • Update the executable file path in the C/C++ Application field (executable (PATH: 'Debug/hello.elf').
    • Click the check box Disable auto build.
    • Click the checkbox Use configuration specific settings and
    • Change the debug launcher to GDB (DSF) Manual Remote Debugging Launcher.
  • Move to the Debugger tab in the popup:
    • Add the GDB debugger path riscv64-unknown-linux-gnu-gdb.
    • Go to the Connection sub-tab of the debugger.
    • Add the host address and required port number where the GDB server is running: Example: `Host name or IP address : 192.168.4.12 Port number : 5000
    • Apply the changes.
  • Click debug.
    • A model pop-up Confirm Perspective Switch will be open and Click the switch button.
  • Debugging is started to connect to the GDB server on the RISC-V board.
  • You should be able to debug and view the output on the RISC-V board.

GDB GUI

gdbgui is a web-based graphical interface for the GNU Debugger (gdb) that simplifies the process of debugging C programs

Tab 1 Tab 2 Tab 3
C/C++

C/C++

1. Installation Steps

1.1**. Install gdbgui on RISC-V Board**

  • Install the necessary dependencies and gdbgui: $ sudo apt-get install gdb python3 $ sudo pip install gdbgui

1.2. Compile the Program

  • Compile the program with debugging information using -g flag:

    $ gcc -g .c -o

1.3. Start gdbgui

  • In the terminal, run the following command to start gdbgui: $ gdbgui -r

  • This will start the service at the host IP, typically http://:5000.

  • Open a web browser on your local machine and enter the URL to access gdbgui, where the respective program will be loaded.

2. Debugging with gdbgui

2.1.Set Breakpoints and Start Debugging:

  • Click on the line number in the code editor where you want to set a breakpoint.
  • After placing the required breakpoint, start the program by typing r or run command in the gdb terminal. This will start the debugged program.
  • Use the buttons on the top right corner of the gdbgui interface to navigate through the program's execution step-by-step, such as continue, pause, restart, step over, etc.

2**.2. Additional Features in gdbgui:**

  • You can check the disassembly of the code by clicking on the top menu bar and selecting Fetch Disassembly. This allows you to debug at the assembly level.
  • gdbgui allows you to track local variables, memory, expressions, and registers in the right panel.
