Train a NN to classify images and optimize cpu inference with OpenVINO in 10mins

Check out the Medium Article for visual start-to-finish steps: https://link.medium.com/bDLwhFpsh8

Basic Requirements

• Latest stable Docker and unzip installed on your Linux System
• Network connectivity to hub.docker.com (instructions assume no proxy)
• 6th to 10th generation Intel Core or Intel Xeon processors or 3rd generation Intel® Xeon® Scalable processors

Train and export a custom model in your browser

• Navigate to https://teachablemachine.withgoogle.com/train and start the "Image Project"
• Edit Class Names to labels (add as many), record using the webcam or file upload
• Hit Train Model (don't switch tabs while training)
• On the Preview panel, hit Export Model
• On the Export your model to use it projects, click the second tab Tensorflow
• With Keras already selected, click the Download my model

Convert any TM2.0: Image Project Keras model to OpenVINO IR format

Replace the downloaded converted_keras.zip file in the current directory (alongside this readme file) and run below script in the repo root folder.

./util_conv_teachable_to_openvino.sh

Notes:

• Pulls necessary docker images (openvino/ubuntu18_dev:latest, tensorflow/tensorflow:1.15.0)
• Extracts the zip file (keras_model.h5, labels.txt)
• Removes training nodes and converts .h5 to frozen .pb (frozen_model.pb)
• Converts .pb to OpenVINO IR (frozen_model.xml, frozen_model.bin, frozen_model.mapping)

Run OpenVINO Inference on a single image

Make sure to capture your test images pertaining to your custom trained model.

docker run --rm -it -v ${PWD}:/workdir openvino/ubuntu18_dev:latest /bin/bash
cd /workdir
python3 teachable_img_openvino_classify.py frozen_model.xml frozen_model.bin labels.txt test.jpg

Note: The python script is only 30 lines of actual code to run cpu optimized inference of a teachable machine 2.0 trained image classification model.

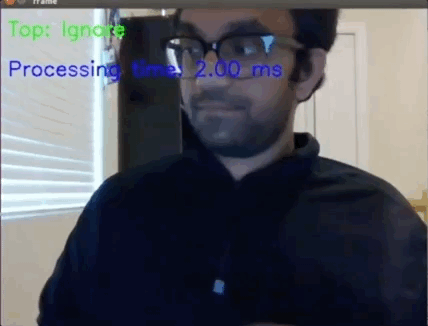

Run OpenVINO Inference on a live webcam

xhost +
docker run --rm -it --privileged -v ${PWD}:/workdir -e DISPLAY=$DISPLAY -v /tmp/.X11-unix:/tmp/.X11-unix -v /dev/video0:/dev/video0 openvino/ubuntu18_dev:latest /bin/bash
cd /workdir
python3 teachable_livecam_openvino_classify.py frozen_model.xml frozen_model.bin labels.txt

Run the original teachable machine example for performance comparsion

docker run --rm -it -v ${PWD}:/workdir tensorflow/tensorflow:1.15.0 bash
cd /workdir
pip install Pillow
python teachable_img_keras_orig_classify.py keras_model.h5 test.jpg

Performance Information

In my case, it took 804ms (~1.2fps) for the predict function with the default example code and model, while it took mere 4ms (~250fps) with OpenVINO python code on the same test.jpg image with OpenVINO inference and conversion with the code from this repo. For more info, see https://link.medium.com/m6nSxDNrh8

Known Limitations

• Only Teachable Machine 2.0: Image projects are covered for now.
• Depending upon popularity, Audio and Pose projects can be covered in the future.
