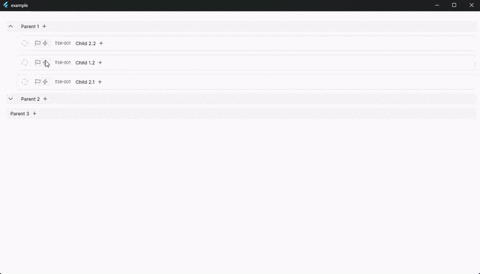

Momentum Tree View

The MTreeview widget provides an interactive, hierarchical, and draggable tree structure for Flutter applications. This widget is highly customizable and supports reordering and nesting of tree nodes with smooth animations.

The widget is based on the Flutter’s familiar APIs of ReorderListView and Draggable. All the mobile, web and desktop platforms are fully supported.

Features

• Drag-and-drop functionality for reordering tree nodes.
• Hierarchical node structure with expandable/collapsible child nodes.
• Customizable node widgets through a builder function.
• Support for connection lines between parent and child nodes.
• Optional drag indicators for improved UX.
• Smooth animations for expanding/collapsing nodes.

Installation

Add the following to your pubspec.yaml:

dependencies:
   mtreeview: latest_version

Then, run:

flutter pub get

Usage

Import the Library

import 'package:mtreeview/treeview.dart';

Basic Example

import 'package:flutter/material.dart';
import 'package:mtreeview/treeview.dart';
import 'package:mtreeview/model/tree_node.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: Text('Treeview Example')),
        body: Treeview(
          treeNodes: _buildTreeNodes(),
          nodeBuilder: (node) =>
              ListTile(
                title: Text(node.label),
              ),
        ),
      ),
    );
  }

  List<TreeNode> _buildTreeNodes() {
    return [
      TreeNode(isRoot: true, label: 'Root 1', children: [
        TreeNode(label: 'Child 1'),
        TreeNode(label: 'Child 2'),
      ]),
      TreeNode(isRoot: true, label: 'Root 2', children: [
        TreeNode(label: 'Child 3'),
      ]),
    ];
  }
}

Customizing the Widget

The MTreeview widget provides several customization options via its constructor:

Constructor Parameters

Parameter	Description	Default Value
treeNodes	A list of TreeNode objects representing the tree structure.	Required
nodeBuilder	A function to build custom widgets for each tree node.	Required
dragWidth	Width of the node being dragged.	300
paddingNode	Left padding for child nodes.	38
dragOpacity	Opacity of the node while being dragged.	0.9
showNodeConnectionLine	Whether to show lines connecting parent and child nodes.	false
paddingLeftNodeConnectionLine	Horizontal padding for the connection lines.	13.0
paddingTopNodeConnectionLine	Vertical padding for the connection lines.	50.0
heightNodeConnectionLine	Height for the connection lines.	50.0
colorNodeConnectionLine	Color of the connection lines.	Color(0xFFE4E4E7)
showDragIndicator	Whether to show a drag indicator when dragging a node.	true
colorDragIndicator	Color of the drag indicator.	Colors.blue

TreeNode Model

The TreeNode class represents individual nodes in the tree structure:

TreeNode Properties:

Property	Description
label	The label of the node.
children	List of child nodes.
isRoot	Indicates if the node is a root node.
isExpanded	Indicates if the node's children are visible.

Example:

TreeNode node = TreeNode(
  isRoot: true,
  label: 'Parent',
  children: [
    TreeNode(label: 'Child 1'),
    TreeNode(label: 'Child 2'),
  ],
);

Advanced Usage:

Customizing Node Widgets

You can use the nodeBuilder to define custom widgets for each node:

    Treeview(
      treeNodes: _buildTreeNodes(),
      nodeBuilder: (node) => Row(
        children: [
          Icon(node.isExpanded ? Icons.expand_more : Icons.chevron_right),
          Text(node.label),
        ],
      ),
    );

Reordering Logic

The onReorder method allows custom logic for handling node reordering. This is managed internally by the MTreeview widget.

Contributions

Contributions are welcome! Feel free to open issues or submit pull requests on the GitHub repository

License

This library is licensed under the MIT License. See the LICENSE file for details.
