Improve Buffer Handling to Reduce GC Pressure

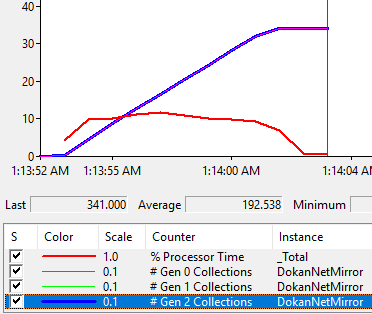

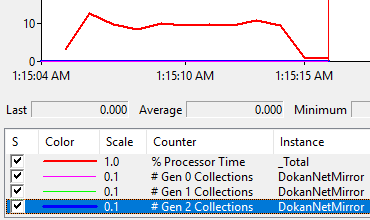

**Background** This is a fix for the issue discussed in #202. The default marshaller for `byte[]` arrays allocates new managed buffers for every native -> managed transition of `Read/WriteFile`. Since these buffers are typically bigger than 85K, they are allocated on the large object heap (LOH) and requires full, expensive Gen2 garbage collection to collect. In some tests, I saw LOH allocation rates of 500+ MB/s and 30+% CPU eaten up by GC - not good. **The Improvement** By manually marshalling the unmanaged buffers to managed `byte[]` arrays, we can pool/reuse the managed buffers and get away with almost no LOH allocations. This change implements that by introducing a simple buffer pool that is utilized from `Read/WriteFile`. This is fully backwards compatible with existing applications - the full benefit is realized by using the latest Dokan-DotNet version. Here is a comparison of copying out a 1 GB file through DokanNetMirror before and after the change. **Test Setup/Execution** ``` C:\DokanGCTest>fsutil file createnew 1GBfile.dat 1073741824 C:\DokanGCTest>DokanNetMirror.exe C:\DokanGCTest>copy N:\DokanGCTest\1GBfile.dat .\copytarget.dat /Y ``` **Before** 341 full Gen2 collections to copy the 1 GB file:  **After** 0 gen2 collections (even 0 gen0 collections!) to copy the 1 GB file. You may observe that the CPU% isn't all that different between these two samples. This is because there are very few live objects on the managed heap in this test. If Dokan was running in a larger server application with lots of live objects on the heap, the difference would be much larger.  **Further Optimization** This also opens the door to one further optimization opportunity: If the application is reading/writing the file contents from/to an unmanaged buffer (such as a memory mapped file), there is no reason to marshall the data from unmanaged, to managed and back to unmanaged. If Dokan exposed the unmanaged `IntPtr `to the file system implementation, it can use `Buffer.MemoryCopy` to perform the copy directly between two unmanaged buffers. Since this requires application changes, we expose this new capability as a new sub interface of `IDokanOperations`: `IDokanOperationsUnsafe`. It introduces new overloads to `Read/WriteFile` that takes `(IntPtr, bufferLength)` instead of `(byte[])`. The application can optionally implement this interface to take advantage of the raw buffers. The PR also includes changes to tests to cover the new functionality: - Changes to test infrastructure to mount two drives during testing; one for `IDokanOperations `and one for `IDokanOperationsUnsafe`. Tests select during `Setup()` which one they would like to run against. - A new test class for the new unsafe overloads, that reuses all the tests from `FileInfoTests `by running them in the new mode with unmanaged buffers. - Upgraded MSTest reference versions and converted `DirectoryInfoTests `to use `DataTestMethod`/`DynamicData `instead of the old `DataSource`/XML file because these tests appeared to be flaky in Appveyor. The new way is neater too. This contribution from Microsoft is licensed under the MIT license.
- Loading branch information
Showing
15 changed files
with
636 additions
and
137 deletions.
There are no files selected for viewing
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| Original file line number | Diff line number | Diff line change |
|---|---|---|
| @@ -0,0 +1,51 @@ | ||
| using System; | ||
| using DokanNet.Logging; | ||
| using Microsoft.VisualStudio.TestTools.UnitTesting; | ||
|
|
||
| namespace DokanNet.Tests | ||
| { | ||
| /// <summary> | ||
| /// Tests for <see cref="BufferPool"/>. | ||
| /// </summary> | ||
| [TestClass] | ||
| public sealed class BufferPoolTests | ||
| { | ||
| /// <summary> | ||
| /// Rudimentary test for <see cref="BufferPool"/>. | ||
| /// </summary> | ||
| [TestMethod, TestCategory(TestCategories.Success)] | ||
| public void BufferPoolBasicTest() | ||
| { | ||
| BufferPool pool = new BufferPool(); | ||
| ILogger logger = new ConsoleLogger(); | ||
|
|
||
| // Verify buffer is pooled. | ||
| const int MB = 1024 * 1024; | ||
| byte[] buffer = pool.RentBuffer(MB, logger); | ||
| pool.ReturnBuffer(buffer, logger); | ||
|
|
||
| byte[] buffer2 = pool.RentBuffer(MB, logger); | ||
| Assert.AreSame(buffer, buffer2, "Expected recycling of 1 MB buffer."); | ||
|
|
||
| // Verify buffer that buffer not power of 2 is not pooled. | ||
| buffer = pool.RentBuffer(MB - 1, logger); | ||
| pool.ReturnBuffer(buffer, logger); | ||
|
|
||
| buffer2 = pool.RentBuffer(MB - 1, logger); | ||
| Assert.AreNotSame(buffer, buffer2, "Did not expect recycling of 1 MB - 1 byte buffer."); | ||
|
|
||
| // Run through a bunch of random buffer sizes and make sure we always get a buffer of the right size. | ||
| int seed = Environment.TickCount; | ||
| Console.WriteLine($"Random seed: {seed}"); | ||
| Random random = new Random(seed); | ||
|
|
||
| for (int i = 0; i < 1000; i++) | ||
| { | ||
| int size = random.Next(0, 2 * MB); | ||
| buffer = pool.RentBuffer((uint)size, logger); | ||
| Assert.AreEqual(size, buffer.Length, "Wrong buffer size."); | ||
| pool.ReturnBuffer(buffer, logger); | ||
| } | ||
| } | ||
| } | ||
| } |
