AG Common

A framework implemented in Java that allows you to loosely describe environments, agents and tasks. This gives flexibility and allows different entities to be reused. It can easily be used to describe BDI agents for example. This is framework is part of my final MSc project that can be downloaded here.

See also

AG Ants, a specialisation of that describes a colony of ants and its main components

Two-minute introduction

All you need to know to understand the following is:

• An environment is a 2 dimensional space made up of instances of the Node interface
• Agents are assigned a type and can be placed in virtually any node of an environment
• Tasks are assigned to agent types

Defining a task

@Immutable
public class WandererTask extends AbstractTask {
    public static final String NAME = "Wanderer";

    public WandererTask() {
        super(WandererTask.NAME);
    }

    /**
    * Randomly navigates from node to node in the environment.
    * Note that this method would fall into a deadlock if the agent's current node is not
    * connected to any other node.
    */
    @Override
    public void execute(final Agent agent) {
        final Node neighbourNode = agent.getCurrentNode()
                .getNeighbour(Direction.getRandomDirection());

        if (neighbourNode != null) {
            neighbourNode.addAgent(agent);
        } else {
            this.execute(agent);
        }
    }
}

Defining an agent type and an agent

@ThreadSafe
public enum BasicTaskAgentType implements TaskAgentType {
    TYPE;

    private final String name = "agent:type:basic";
    private final List<Task> tasks;

    private BasicTaskAgentType() {
        tasks = new ArrayList<Task>();
        tasks.add(new WandererTask());
    }

    @Override
    public String getName() {
        return name;
    }

    @Override
    public List<Task> getTasks() {
        return Collections.unmodifiableList(tasks);
    }
}

@ThreadSafe
public class BasicAgent extends TaskAgent {
    public BasicAgent(String id) {
        super(id, BasicTaskAgentType.TYPE, false);
    }

    @Override
    public Void call() throws Exception {
        while (!Thread.currentThread().isInterrupted()) {
            this.getTaskByName(WandererTask.NAME).execute(this);

            try {
                Thread.sleep(5);

            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            }
        }

        return null;
    }
}

Running a simulation

public class BasicSimulation {
    public static void main(String[] args) {
        final Environment env = new BasicEnvironment(200, 200);
        final Simulation sim = new Simulation("target/", env, 20);
        final Agent a = new BasicAgent("agent");

        sim.addAgentMiddleEnvironment(a);

        sim.scheduleEnvironmentExploredRenderer("explored-5.png", 5, TimeUnit.SECONDS);
        sim.scheduleEnvironmentExploredRenderer("explored-10.png", 10, TimeUnit.SECONDS);
        sim.scheduleEnvironmentExploredRenderer("explored-20.png", 20, TimeUnit.SECONDS);
        sim.scheduleEnvironmentExploredRenderer("explored-30.png", 30, TimeUnit.SECONDS);

        sim.run(30, TimeUnit.SECONDS);
    }

In the last section we used the simulation to schedule 5 ExploredEnvironmentRenderer at 5, 10, 20 and 30 seconds respectively. This kind of renderer in particular creates a snapshot of the environment, marking a node that has been visited by any agent in black.

Analysing the simulation output

The result:

Overview

We can divide the framework in two main areas, the model and the utility classes.

Model

The three core components of the model are the packages:

1. Environment

• Node
• Communication Stimulus
• Communication Stimulus Type
• Environment Element
• Other
  • Coordinate
  • Direction

2. Agent

• Agent Interface
• Agent Type

3. Task

• Task Interface

Environment

Node

The fundamental entity to represent the environment is the Node interface. A node can be seen as an infinitesimal piece of the environment. By linking nodes together it is possible to create complex network of objects that will describe the space where agents can navigate.

See: Node, BasicNode

Communication Stimulus

Agents can shape the environment they belong to in various ways, communication stimuli are one. They are deposited by the agents onto the environment. Other agents can read these stimuli and use them to draw any conclusions and take decisions based on the state of the environment.

The CommunicationStimulus interface is an abstraction of any communication inter-action.

See: CommunicationStimulus, BasicCommunicationStimulus

Communication Stimulus Type

We have many ways to communicate, we can talk to other people, we can write them an e-mail or use sign language to transmit any information we find useful to transmit.

The CommunicationStimulusType interface is an high level abstraction of a specific way to communicate.

See: CommunicationStimulusType

Environment Element

An environment element is an abstraction to anything that could be added to the environment grid. For example, nodes that could represent obstacles in the element. Each element has a dimension, a colour that is used by the renderer, and identification string that should be unique for each environment.

See: EnvironmentElement, BasicEnvironmentElement

Other

Coordinate

Representation of a coordinate in the environment.

See: Coordinate

Direction

Nodes are connected in a 8-way, that is, they can have 8 different neighbours. This class declares these directions. They are used throughout the framework in order to select nodes, move agents and create environments.

See: Direction

Package Overview

Agent

Agent Interface

The abstraction of any agent is the Agent interface. It formalises the basic Application Public Interface (API) that is available to any agent in the model.

See: Agent, AbstractAgent, TaskAgent

Agent Type

Agents belong to a certain type, the AgentType interface formalises that. Classes that implement this interface are associated to agents and aggregate behaviour that will govern how the agents of these types will present.

See: AgentType, TaskAgentType, BasicTaskAgentType

Package Overview

Task

Task Interface

A task is a unit of specialised work. They are the means by which agents do something they need to do. Different type of agents can share the same task, but it is up to each of them how to use it. Tasks are a convenient way to process unit of work that are isolated one from another and done by more than one type of agent.

The Task interface formalise the basic API for defining tasks that will be associated to agent types.

See: Task, AbstractTask, WandererTask

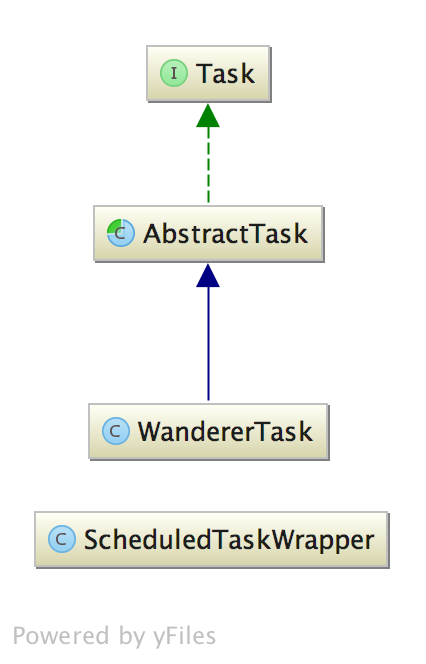

Package Overview
